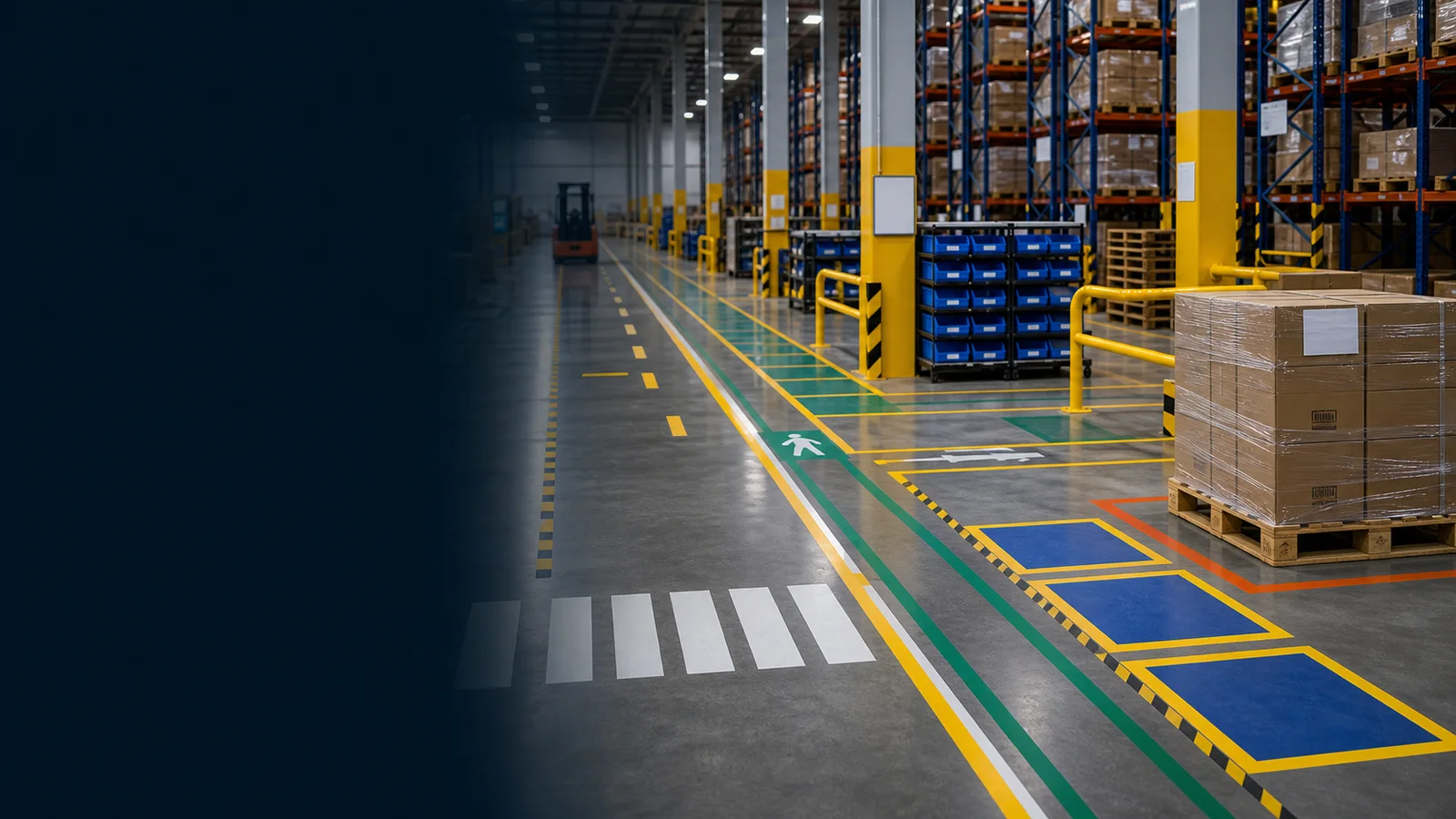

Floor Color & Pattern Standard warehouse framework photo

Framework

Floor Color & Pattern Standard

A unified Lean + Safety color system for warehouse floors: clear meanings, standard sizes, and printable legends — all in one page.

Overview

What this framework standardizes

Floor Color & Pattern Standard is designed for warehouse teams that need a clear operating method, not just a theoretical document. It explains what supervisors, team leaders, operators, and support functions should look for on the floor, how to convert observations into action, and how to keep the standard alive after the first rollout.

The page focuses on Floor Color & Pattern Standard, Core Palette — Safety & Lean (RAL / HEX), Letter-by-Letter Standard, Printable Legend (A3 recommended). These topics help teams align language, reduce variation, and build a repeatable routine that can be audited, trained, and improved over time.

Use this framework as a working reference during shift meetings, Gemba walks, onboarding, improvement workshops, SOP reviews, and daily performance follow-up. The goal is to make the right behavior visible, simple, and repeatable.

5Focus areas
39Floor checks
4Rollout phases

Detailed Guidance

Practical execution notes

Floor Color & Pattern Standard

A unified Lean + Safety color system for warehouse floors: clear meanings, standard sizes, and printable legends — all in one page.

  • Action: 🖨️ Print / Save PDF

Core Palette — Safety & Lean (RAL / HEX)

Pick once and use site-wide. Reserve Green / Red / Yellow-Black for safety. Use Blue / Violet / Grey / Orange / Teal / White for Lean process markings.

  • Line widths : 75 mm (standard), 100 mm (primary/emergency)

  • Zebra : 300 mm bars / 300 mm gaps

  • Hatching : 45°, 200–300 mm spacing

  • Chevrons : 45°, 100–150 mm legs

  • Door arcs : ≈1.2 m radius (Red/White — DO NOT BLOCK )

  • Text : ≥100 mm cap height (EN/RO/DE)

Letter-by-Letter Standard

Green borders; Black/White zebra at crossings.

Sizes: Green 100 mm; Zebra 300/300 mm. Min width 1.2 m (main 1.8 m).

White lane edges; Blue arrows.

Optional dashed centerline 1 m on / 0.5 m off; Yellow/White caution at blind corners.

  • 90° crossings; anti-slip topcoat.

  • No Red/White on walkways.

  • Yield triangles; speed stencils every 15–20 m.

  • No Yellow/Black for lane edges.

  • Access: QA/Maint only; no staging inside.

  • Don’t use Red for process status.

  • Exits, extinguishers, hydrants, panels, hose reels.

  • Weekly audit; photo violations.

  • Pair with guards; stripes ≠ barrier.

  • Not for lane edges.

  • Use Violet for staging, not Red/Green.

  • Add Yellow/White where pedestrians pass.

  • Mark “NO DRILL” at subfloor corridors.

  • Dotted avoids confusion with lanes.

  • Bay code + capacity on floor edge.

  • Directional flow; avoid backflow.

Printable Legend (A3 recommended)

  • Green = Safe / Egress

  • Red/White = Keep-Clear / Fire — DO NOT BLOCK

  • Yellow / Black = Warning

  • Yellow / White = Caution

  • Black/White = Zebra / Guidance

  • Blue = Flow / Operator Zones

  • Violet = Staging / Supermarkets

  • Grey = Equipment Parking

  • Orange = Utilities / “NO DRILL”

  • Teal = Ergonomics

  • White = Labels / Edges / Arrows

  • Repaint/retape if peel/contrast loss >10%.

  • 5S weekly + Gemba quarterly audits; photograph “as-built”.

  • H&S sign-off for Green / Red-White / Yellow-Black changes.

  • Epoxy/MMA for permanence; beveled industrial tape for fast change.

  • Action: 🖨️ Print this Legend

Implementation

How to implement this framework without creating another unused document

01

Diagnose

Understand the current condition

Compare the current warehouse process with the Floor Color & Pattern Standard standard. Look for unclear ownership, missing visual controls, repeated questions, rework, waiting time, safety exposure, and places where teams rely on memory instead of a visible rule.

02

Design

Translate the framework into local rules

Turn the guidance into simple local standards: who owns the routine, when it is checked, which evidence is required, and what escalation path is used when the expected condition is not met.

03

Deploy

Train, test, and improve on the floor

Pilot the standard in one area first. Train the team with examples, gather feedback, remove friction, and then expand once the routine works under real workload pressure.

04

Sustain

Review results and prevent drift

Add the topic to daily or weekly management cadence. Track open actions, check whether the standard is still visible, and update SOPs, work instructions, or visual controls when the operation changes.

FAQ

Common questions about Floor Color & Pattern Standard

What is Floor Color & Pattern Standard?

A unified Lean + Safety color system for warehouse floors: clear meanings, standard sizes, and printable legends — all in one page.

How should a warehouse team use Floor Color & Pattern Standard?

Start with a short review of the current process, select one pilot area, apply the relevant checks, and assign owners for every gap. The page works best when it is used during real floor observation, not only as office documentation.

Why is Floor Color & Pattern Standard important for warehouse operations?

It reduces ambiguity and makes execution more consistent. A clear framework helps teams train faster, detect abnormal conditions earlier, and protect improvements from disappearing after volume, staffing, or layout changes.

How often should Floor Color & Pattern Standard be reviewed?

Review it during implementation, then include the key points in daily or weekly leadership routines. A deeper review should happen after incidents, layout changes, SOP updates, audit findings, or repeated performance issues.
