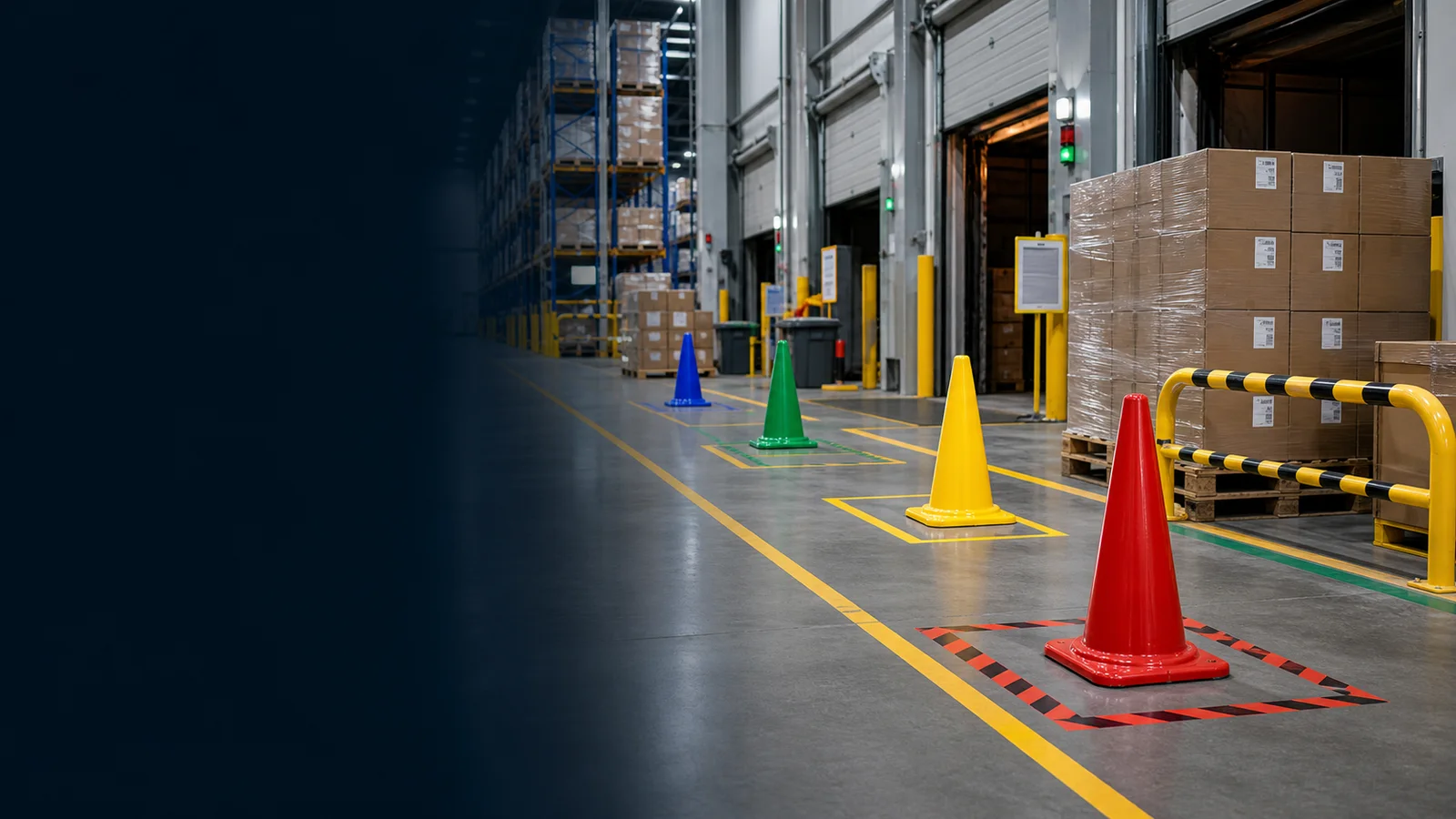

Colored Cone Signaling Framework

Make pallet status obvious at 20–30 ft. Define where cones go, when they change, and who owns clarity.

• Map outbound flow (pick → stage → QA → load) with cone decision points

• Define a single placement rule (top-center of pallet / front-left of row)

• Publish a one-page status map visible at staging and dock

• Add cone checkpoints to SOPs (receive, stage, QA, load)

• Document status handoffs between teams (picker → stager → loader)

• List exceptions (mixed pallets, multi-order rows, oversize loads)

• Photograph “correct vs. wrong” cone placement for the visual guide

• Set maximum cones in sight (≤6 colors total) to avoid confusion

• Create a daily pre-shift cone sweep (remove stray/legacy cones)

• Add cone status to end-of-line verification guide

Limit to 4–6 colors with unique meanings. Workers act immediately without asking.

• Choose the core color set (suggested: Red, Yellow, Orange, Green, Blue, Black)

• Define exact meanings: Red=Rush now; Yellow=Pending/awaiting check; Orange=In process; Green=Ready to load; Blue=On hold (docs/slot/time); Black=Quarantine/unsafe

• Ban overlapping meanings (each color = one meaning only)

• Write the “if cone then action” table for each role (picker/stager/loader/supervisor)

• Print pocket cards / stickers with color legend for all staff

• Install large wall legend at staging and each dock door

• Add cone legend to WMS training slides and new hire onboarding

• Set “Red takes priority over all except Black safety holds”

• Define escalation for conflicting cones (who resolves in <5 min)

• Audit for “red everywhere” misuse; cap % of Red to true rush only

Swap cones the moment status changes to prevent FISH (First In, Still Here).

• Assign swap ownership at each step (who changes the cone and when)

• Create a 60-second rule: status change → cone change within 1 minute

• Add cone swap as a required step in pick/QA/load confirmations

• Provide spare cones at every checkpoint (no walking to fetch)

• Add a “cone swap” checkbox to the staging ticket / tablet form

• Implement “Red aging”: tag Red with time; alert at 30/60 minutes

• Introduce a quick visual sweep every hour to find stale cones

• Record “stale cone” incidents and root cause in a simple log

• Add cone checks to daily Gemba/stand-up walk

• Post a leaderboard for teams with best on-time cone swaps

Cones drive sequence to reduce rehandles and speed dock turns.

• Dock plan: load Green by door sequence; pull Red to front of queue

• Set loader rule: clear visible Greens before break/shift end

• Define tie-breaks (same color): by dock door → by oldest time stamp

• Use Green lanes to pre-position pallets in exact loading order

• For Yellow (pending), define timebox to resolve (e.g., ≤15 minutes)

• Automate paging for Reds to the right team (QA/docs/slot)

• For Orange (in process), limit WIP per lane to avoid blockages

• Track time from Green to truck departure by route/door

• Measure touches per pallet before/after cones

• Run weekly Kaizen on top 3 delay patterns surfaced by cones

Black = quarantine/unsafe. Movement requires supervisor sign-off.

• Define Black use cases (damage, instability, hazmat, regulatory hold)

• Publish “Do not move Black” rule and escalation tree

• Add Black to incident/near-miss workflow and log form

• Place Black cone storage near QA/EHS desk with sign-out record

• Train forklift drivers on Black scenarios and safe alternatives

• Add visual barriers for Black rows (strap/chain/floor marking)

• Audit Black holds daily; confirm owner and next action

• Include Black checks in safety walks and toolbox talks

• Simulate Black responses in quarterly drills

• Track incident rate pre/post Black adoption

Standardize visibility and layout so anyone can read the floor at a glance.

• Standardize cone height/size for 20–30 ft visibility

• Mark pallet/row “cone spot” with durable decal

• Create cone holders to prevent falls during transport

• Align staging lanes with dock doors; label visibly

• Add “Green corridor” straight to loading area

• Define 5S for cones (Sort/Set/Shine/Standardize/Sustain)

• Schedule weekly cone condition check (lost/broken/dirty)

• Keep spare sets per zone with a par level

• Eliminate cone color variants that look similar in low light

• Add night-shift lighting check for color legibility

Easy to learn in minutes; reinforce with clear visuals and micro-training.

• Buy stackable cones (6 colors), large and durable; label bases

• Publish a 1-page quick start guide with photos

• Run a 15–30 min stand-up training (all shifts)

• Issue pocket cards and supervisor lanyard cards

• Add cone questions to new hire quiz

• Install color-blind-safe icons on cones (shape/letter add-ons)

• Translate the legend for local languages as needed

• Create a 60-second video demo (QR on posters)

• Put cones in the LMS/e-learning module for refreshers

• Capture feedback after week 1 to remove friction

Pilot small, then scale. Add labeling to support complex sites.

• Pilot one shipping line for 1–2 weeks with baseline metrics

• Set pilot success criteria (throughput, FISH, rehandles, safety)

• Add cone IDs / lane codes for large sites

• Print door-specific legends if meanings differ (avoid if possible)

• Integrate simple timestamps/labels on cones for aging

• Document lessons learned and update SOPs before scale-up

• Roll to additional lines; train champions per zone

• Order spare inventory to cover 10% loss/breakage

• Add cones to site onboarding and cross-site playbook

• Re-audit 30/60/90 days after scale-up

Prove value with data and stories; iterate to sustain gains.

• Define baseline: throughput, FISH count, touches, misroutes, incidents

• Track weekly: Red aging %, Green-to-load time, Black duration

• Publish a simple dashboard on the team board

• Share wins in stand-ups; highlight kaizen fixes

• Measure morale signal (frustration → clarity) via pulse survey

• Tie outcomes to cost/ROI (cones vs. saved time/errors)

• Recognize teams with best cone discipline

• Review color set quarterly; remove/add only with evidence

• Include cone adherence in leader standard work

• Refresh training every 6 months with updated photos
